How do you manually reset the limit switch on a Goodman furnace?

The limit switch is an important component of your Goodman furnace, as it helps to ensure that the temperature inside the furnace stays within safe limits. However, there may be times when the limit switch gets tripped and needs to be manually reset. In this article, we will show you how to do just that.

First, it is important to understand what the limit switch does. The limit switch is designed to monitor the temperature inside the furnace. If it detects that the temperature has exceeded a certain limit, it will shut off the burners to prevent any potential damage or safety hazards. However, sometimes the limit switch can be tripped even when the temperature is not too high. This can happen due to a variety of reasons, such as a faulty sensor or a clogged air filter.

To manually reset the limit switch on your Goodman furnace, you will first need to locate the switch. The limit switch is typically located on the furnace’s blower housing or on the ductwork near the blower. Once you have located the switch, you will need to turn off the power to the furnace and remove the front access panel. This will give you access to the switch.

Once you have accessed the limit switch, you will need to carefully press the manual reset button, which is usually located in the center of the switch. You should hear a click when you press the button. After pressing the reset button, you can then turn the power back on to the furnace and replace the front access panel. The furnace should now reset and resume normal operation.

Note: If you find that the limit switch keeps tripping repeatedly, it is important to address the underlying issue. This could be a sign of a more serious problem with your furnace, such as a blocked vent or a malfunctioning blower motor. In such cases, it is recommended to contact a professional HVAC technician to properly diagnose and repair the issue.

In conclusion, manually resetting the limit switch on your Goodman furnace is a relatively simple process that can help to resolve issues with the furnace’s temperature regulation. By following the step-by-step guide outlined in this article, you can easily reset the limit switch and ensure that your furnace is operating safely and efficiently.

What is a Limit Switch?

A limit switch is a safety device installed in a Goodman furnace that helps to prevent the furnace from overheating. It is a small switch that can manually be reset in case it trips.

The limit switch is designed to monitor the temperature inside the furnace and shut off the burner if it exceeds a certain limit. This is important because if the furnace gets too hot, it can cause damage to the components and pose a fire hazard.

When the limit switch is triggered, it interrupts the power supply to the burner, which prevents it from producing more heat. This gives the furnace a chance to cool down before it can be restarted again.

If you suspect that the limit switch on your Goodman furnace has tripped, you can manually reset it by following the steps provided in this guide. Resetting the limit switch appropriately can help ensure the safe and efficient operation of your furnace.

Importance of Resetting the Limit Switch

When it comes to your Goodman furnace, the limit switch plays a crucial role in ensuring the safety and optimal performance of your unit. The limit switch is designed to monitor the temperature inside the furnace and shut off the burner if it detects the temperature exceeding a certain limit.

If the limit switch is tripped, it is important to reset it to ensure the proper functioning of your furnace. By resetting the limit switch, you can prevent potential damage to your furnace and ensure that it operates efficiently.

So, how do you manually reset the limit switch on your Goodman furnace? The process is relatively simple. First, locate the limit switch, which is typically a small rectangular device with a red button. Press and hold the red button for a few seconds to reset the switch. Once reset, the limit switch should resume normal operation.

Resetting the limit switch is an easy maintenance task that should be performed whenever necessary. By doing so, you can avoid unnecessary furnace repairs and keep your Goodman furnace operating smoothly throughout the heating season.

Please note that if resetting the limit switch does not resolve the issue or if it continues to trip frequently, it is recommended to consult a professional HVAC technician to diagnose and fix the underlying problem. A trained technician will have the expertise and tools to identify any potential issues and ensure the safe operation of your furnace.

Key Points

– The limit switch is a crucial safety component in a Goodman furnace

– Resetting the limit switch ensures proper furnace functioning

– Locate the limit switch and press and hold the red button to reset it

– Consult a professional if the limit switch continues to trip frequently

Signs of a Tripped Limit Switch

A limit switch is a safety device in a Goodman furnace that shuts off the furnace if it gets too hot. When the limit switch trips, it interrupts the flow of electrical current and prevents the furnace from operating. It is important to know the signs of a tripped limit switch so you can reset it and get your furnace back up and running.

One of the most obvious signs of a tripped limit switch is that your furnace will not turn on. If you adjust the thermostat and nothing happens, it could be because the limit switch has tripped.

Another sign is that the blower fan on your furnace is constantly running. This is because the limit switch is designed to turn on the blower fan when it detects that the furnace is overheating. If the switch is tripped, the blower fan will run continuously even when the furnace is not producing heat.

You may also notice that your furnace is not producing enough heat or that the heat is inconsistent. The limit switch is responsible for regulating the temperature in the furnace, so if it is tripped, the heat output may be affected.

If you suspect that your limit switch has tripped, you can try resetting it. First, turn off the power to the furnace. Locate the limit switch, which is usually a small rectangular box with a button on it. Press the button to reset the switch. Then, turn the power back on and check if the furnace is working.

If resetting the limit switch does not solve the problem, it is recommended to call a professional HVAC technician to inspect and repair your furnace.

In conclusion, knowing the signs of a tripped limit switch can help you identify and resolve furnace issues. By understanding how the limit switch works and what to look for, you can keep your Goodman furnace running smoothly and efficiently.

Safety Precautions before Resetting

Before attempting to reset the limit switch on your Goodman furnace, it is important to follow these safety precautions to ensure your well-being and the proper functioning of the system.

1. Turn off the furnace: To avoid any potential accidents, make sure to turn off the furnace and disconnect it from its power source before proceeding with the reset. This will minimize the risk of electric shock or injury.

2. Allow the furnace to cool down: Furnaces can reach high temperatures during operation. Wait for the furnace to cool down completely before attempting to reset the limit switch. Touching a hot furnace can result in burns or other injuries.

3. Read the manufacturer’s manual: Familiarize yourself with the specific instructions and safety precautions provided by the furnace manufacturer. Each furnace model may have slightly different reset procedures, so it is essential to understand the recommended steps before proceeding.

4. Wear protective gear: As an added safety measure, wear protective gloves and goggles while working with the furnace. This will protect your hands and eyes from potential hazards, such as sharp edges or flying debris.

5. Know how to manually reset the limit switch: Before attempting to reset the limit switch, make sure you understand how it operates and the correct procedure for resetting it. This knowledge will help prevent any further damage to the furnace or potential hazards.

6. Consult a professional if unsure: If you are unsure about how to reset the limit switch or if you encounter any difficulties during the process, it is best to seek assistance from a qualified HVAC professional. They have the skills and expertise to safely diagnose and address any issues with your furnace.

By following these safety precautions, you can minimize the risks associated with resetting the limit switch on your Goodman furnace and ensure the safety and effectiveness of your heating system.

Step 1: Turn Off Power Supply

To manually reset the limit switch on your Goodman furnace, you need to first turn off the power supply. This is an important safety precaution as it ensures that you won’t be exposed to any electrical hazards while working on the furnace.

Step 2: Locate the Limit Switch

To reset the limit switch on a Goodman furnace, you will first need to locate the switch. The limit switch is a safety device that monitors the temperature inside the furnace. If the temperature exceeds a certain limit, the switch will trip and shut off the furnace to prevent damage.

To find the limit switch, begin by locating the furnace itself. The furnace is typically located in the basement, utility closet, or another designated area of the home. Once you have located the furnace, you can move on to locating the limit switch.

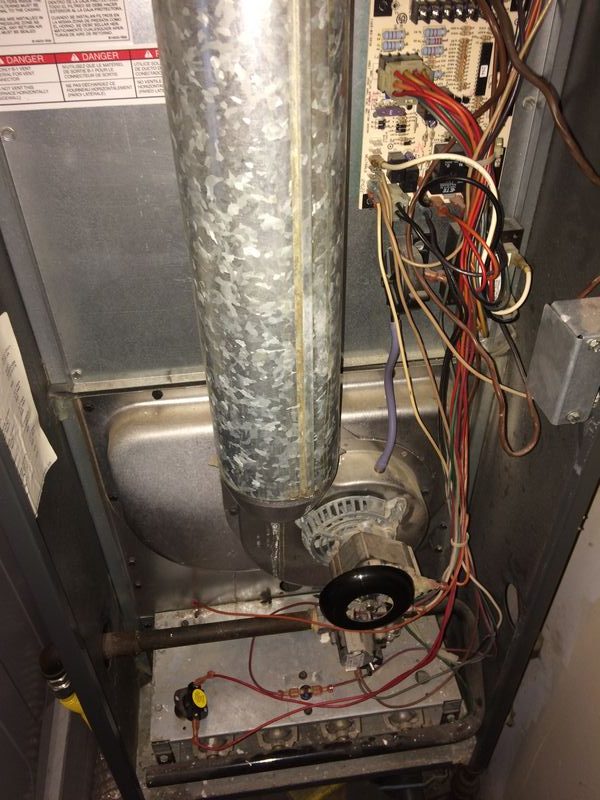

The limit switch is usually located near the burner assembly or heat exchanger. It is a small rectangular or circular device with wires connected to it. The switch may be attached to a mounting plate or bracket.

To visually identify the limit switch, look for a switch with a small button or lever that can be manually reset. The switch may also have a small window or indicator light to show if it has tripped.

Note: It is important to use caution when working with the limit switch. Always turn off power to the furnace before attempting to reset or replace the switch. If you are unsure of how to safely reset the limit switch, it is recommended to consult a professional HVAC technician.

Step 3: Inspect for Triggers

After resetting the limit switch on your Goodman furnace, you may need to inspect for any triggers that could have caused the switch to trip in the first place. It’s important to identify and address these triggers to prevent future issues with your furnace.

Here’s what you need to do:

1. Check for blocked vents or air filters: A clogged air filter or blocked vents can restrict airflow and cause the limit switch to trip. Inspect the vents and air filter to ensure they are clean and unobstructed. If necessary, clean or replace the air filter.
2. Verify proper functioning of the blower motor: A malfunctioning blower motor can overheat and trigger the limit switch. Listen for any unusual noises coming from the motor or observe if it’s not running at all. If the blower motor is faulty, you may need to call a professional for repairs or replacement.
3. Inspect the furnace burners: Dirty or malfunctioning burners can cause the furnace to overheat and trip the limit switch. Carefully examine the burners for any debris, soot, or signs of damage. If needed, clean or replace the burners to ensure proper functioning.
4. Check the thermostat settings: An improper thermostat setting can cause the furnace to overheat and trigger the limit switch. Make sure the thermostat is set to the desired temperature and mode (heating or cooling). Adjust the settings if necessary.

By thoroughly inspecting these potential triggers and addressing any issues, you can help prevent future limit switch tripping and ensure the smooth operation of your Goodman furnace.

Step 4: Reset the Limit Switch

In order to reset the limit switch on your Goodman furnace, here’s what you need to do:

1. Locate the limit switch on your furnace. It is typically a small, rectangular device with a red reset button.
2. Make sure your furnace is turned off before proceeding.
3. Gently press the red reset button on the limit switch.
4. Hold the reset button down for about 5 seconds.
5. Release the reset button and turn your furnace back on.

By following these steps, you can successfully reset the limit switch on your Goodman furnace.

Step 5: Test the Furnace

Once you have reset the limit switch on your Goodman furnace manually, it is important to test the furnace to ensure that it is functioning properly. Here’s how:

1.	Make sure the thermostat is set to the desired temperature and is calling for heat.
2.	Turn the power switch back on, allowing the furnace to start.
3.	Observe the furnace as it goes through its startup sequence.
4.	Listen for any unusual noises or sounds coming from the furnace.
5.	Feel the air coming from the vents to ensure that it is warm.
6.	Check the temperature in your home to see if it is rising as expected.
7.	If everything appears to be functioning properly and the furnace is providing steady, warm air, you have successfully reset the limit switch on your Goodman furnace.

However, if the furnace is not working correctly or you notice any issues, it is recommended to contact a professional HVAC technician to diagnose and resolve the problem.

Common Issues during Resetting

Resetting the limit switch on a Goodman furnace is a relatively simple process, but it can be frustrating if you encounter any common issues along the way. Here are a few things to keep in mind:

1. Accessing the switch: Before attempting to reset the limit switch, make sure you can easily access it. It may be located in a tight or hard-to-reach spot, requiring you to remove panels or other components of the furnace. Take your time and follow the manufacturer’s instructions to ensure you can safely reach the switch.

2. Power source: Before resetting the limit switch, it’s important to turn off the power to the furnace. This can be done by switching off the circuit breaker or by disconnecting the furnace from its power source. Failure to do so can result in electric shock or damage to the furnace.

3. Manual versus automatic reset: Some Goodman furnaces have a manual reset limit switch, while others have an automatic reset switch. It’s important to know which one you have before attempting to reset the switch. A manual reset switch will need to be reset manually, while an automatic reset switch will reset itself once the issue is resolved.

4. Identifying the issue: Resetting the limit switch is often done as a troubleshooting step. However, it’s important to understand that the limit switch is a safety device that is designed to shut off the furnace if it overheats. If you find yourself needing to reset the limit switch frequently, it may indicate a more significant issue with your furnace that requires professional attention.

5. Following proper procedure: When resetting the limit switch, it’s crucial to follow the proper procedure outlined in your furnace’s manual. This typically involves pressing or flipping the reset button or switch, waiting for a set period of time, and then restoring power to the furnace. Following the correct steps will help ensure that the reset is done correctly and safely.

By keeping these common issues in mind, you can navigate the process of resetting the limit switch on your Goodman furnace with confidence. However, if you are unsure or uncomfortable performing the reset yourself, it’s always best to contact a professional HVAC technician for assistance.

When to Call a Professional

If you have tried resetting the limit switch on your Goodman furnace manually and it still does not work, it may be a sign that there is a more serious issue with your furnace. In these cases, it is recommended that you call a professional HVAC technician to assess and fix the problem.

A professional technician will have the necessary knowledge and equipment to accurately diagnose the problem and perform any necessary repairs. Attempting to fix complex furnace issues without the proper training and experience can not only be dangerous but may also cause further damage to your furnace.

Additionally, there are certain situations where it is always best to call a professional rather than trying to fix the issue yourself. If you notice any of the following signs, it is important to contact a professional HVAC technician:

1. Strong gas smell: If you smell gas coming from your furnace, it is important to immediately turn off the furnace and call a professional. A gas leak can be extremely dangerous and requires immediate attention.
2. Strange noises: If your furnace is making loud or unusual noises, it may indicate a mechanical problem that needs professional attention.
3. Lack of heat: If your furnace is not producing enough heat or is not working at all, it is best to call a professional to avoid further damage and ensure your home stays warm during the colder months.
4. Carbon monoxide detector goes off: If your carbon monoxide detector goes off, it could indicate a leak or combustion issue with your furnace. Carbon monoxide is a silent and deadly gas, so it is crucial to vacate the premises immediately and call a professional.

Remember, while knowing how to reset the limit switch on a Goodman furnace can be helpful in some cases, it is always wise to contact a professional HVAC technician if you are unsure or if the problem persists after attempting a reset. They have the experience and expertise to handle any furnace issues safely and effectively.

Tips for Maintaining the Limit Switch

Proper maintenance of the limit switch on your Goodman furnace is essential for optimal performance and to avoid any potential issues. Here are some tips to help you keep your limit switch in good condition:

1. Regularly inspect the switch:

Take the time to visually inspect the limit switch for any signs of damage or wear. Look for loose connections or frayed wires that may need repair or replacement. Doing this regularly can help prevent any future problems.

2. Clean the switch:

Dust and debris can accumulate on the limit switch, which can affect its functionality. Use a soft, dry cloth or a can of compressed air to gently clean the switch. Be careful not to apply too much pressure or use any liquids, as this can cause damage.

3. Test the switch:

You can test the limit switch to ensure it is working correctly. Turn off the furnace and set the thermostat to a high temperature. Wait for the furnace to start, and then carefully touch the limit switch. If the switch feels hot, it may be malfunctioning and need to be replaced.

4. Schedule professional maintenance:

While you can perform some maintenance tasks yourself, it is recommended to have a professional inspect and service your furnace on a regular basis. They can ensure that all components, including the limit switch, are functioning properly and make any necessary adjustments or repairs.

5. Resetting the limit switch:

If you do need to reset the limit switch manually, make sure you follow the manufacturer’s instructions carefully. Improperly resetting the switch can cause further damage or even pose a safety hazard. When in doubt, consult a professional technician for assistance.

By following these tips, you can keep your Goodman furnace’s limit switch in good condition and ensure reliable performance for years to come. Regular maintenance and inspections are crucial for identifying and addressing any potential issues before they become major problems.

FAQs about Resetting the Limit Switch

Below are some frequently asked questions about manually resetting the limit switch on a Goodman furnace:

Q: How do I manually reset the limit switch on my Goodman furnace?

A: To manually reset the limit switch on your Goodman furnace, you will need to locate the switch on the furnace panel. Once you have found the switch, press and hold the button for a few seconds until you hear a click. This will reset the switch and should resolve any issues you are experiencing.

Q: What does the limit switch do?

A: The limit switch is a safety feature on the furnace that monitors the temperature inside the unit. If the temperature exceeds a pre-set limit, the switch will shut off the burner to prevent overheating and potential damage to the furnace.

Q: Why would I need to reset the limit switch?

A: In some cases, the limit switch may trip if there is a problem with the furnace, such as a blocked air filter or an issue with the blower motor. Resetting the switch can help resolve these issues and allow the furnace to function properly again.

Q: Can I reset the limit switch on my own?

A: Yes, you can manually reset the limit switch on your own. However, if you are unsure of how to do so or if the problem persists after resetting the switch, it is recommended to contact a professional HVAC technician for further assistance.

Q: Should I reset the limit switch every time my furnace stops working?

A: No, resetting the limit switch should not be done as a routine troubleshooting step. It is only necessary to reset the switch if there is a specific issue with the furnace that has caused the switch to trip. If your furnace stops working, it is best to check for other possible causes before attempting to reset the limit switch.

Troubleshooting Guide for Limit Switch Problems

If you are experiencing issues with the limit switch on your furnace, there are a few steps you can take to troubleshoot the problem before calling a professional. Here is a step-by-step guide on how to manually reset the limit switch:

1. Turn off the power to your furnace.
2. Locate the limit switch on your furnace. It is usually a small box-shaped device with a button or lever.
3. Press or flip the button or lever on the limit switch to reset it. Make sure you hear a click or feel a slight resistance.
4. Turn the power back on to your furnace.
5. Wait for the furnace to cycle through its startup process and see if the limit switch problem has been resolved.

If manually resetting the limit switch does not solve the problem, there may be a more serious issue with your furnace. In this case, it is recommended to contact a professional HVAC technician for further assistance.

Q&A:

What is a limit switch on a Goodman furnace?

A limit switch on a Goodman furnace is a safety device that is designed to shut off the furnace if it gets too hot. It helps to prevent overheating and potential damage to the unit.

How do I know if the limit switch on my Goodman furnace needs resetting?

If your Goodman furnace is not heating properly or if it constantly shuts off, it might be a sign that the limit switch has tripped. You can check the switch by looking for a small button or a reset lever on the unit’s control board.

Can I reset the limit switch on my Goodman furnace myself?

Yes, you can reset the limit switch on your Goodman furnace yourself. It is a fairly simple process that involves locating the switch, pressing the reset button or flipping the reset lever, and then turning the power back on to the furnace.

What precautions should I take before resetting the limit switch on my Goodman furnace?

Before resetting the limit switch, it is important to ensure that the furnace is turned off and the power to the unit is disconnected. This will help to prevent any potential electric shock or other accidents while working on the furnace.

If resetting the limit switch doesn’t solve the problem, what should I do next?

If resetting the limit switch does not solve the issue with your Goodman furnace, it is recommended to call a professional HVAC technician to diagnose and fix the problem. There might be an underlying issue that requires professional expertise to address.
