Where is the fuse on a Goodman AC unit?
If your AC unit is not working properly, one possible cause could be a blown fuse. The fuse is a safety device designed to protect the unit from electrical damage. For Goodman AC units, finding the location of the fuse is vital to troubleshoot and fix the problem.
Goodman is a well-known brand in the field of heating and cooling systems. Their AC units are known for their reliability and durability. In order to locate the fuse on a Goodman AC unit, it is important to understand the design and layout of the unit.
The fuse is typically located near the control board or the air handler of the AC unit. It is important to note that the exact location of the fuse may vary depending on the specific model of the Goodman AC unit. Refer to the unit’s manual or contact a professional if you are unsure where the fuse is located.
Once you have located the fuse, it is important to check if it is blown or not. A blown fuse will have a broken filament or a blackened appearance. If the fuse is blown, it will need to be replaced with a new one of the same amperage rating. Always turn off the power to the AC unit before replacing the fuse to prevent electrical shock.
Goodman AC Unit: Overview and Purpose
The Goodman AC unit is a central cooling system that is designed to regulate the temperature of a space by removing heat and humidity from the air. It is an essential component of any home or commercial building, especially in hot climates or during the summer months.
The purpose of a Goodman AC unit is to provide cool and comfortable air to the interior of a building. It works by taking in warm air from the surroundings, passing it through a refrigeration cycle, and then releasing the cooled air back into the space. This process is repeated continuously to maintain a consistent temperature.
A Goodman AC unit is typically installed on the exterior of a building, where it can draw in fresh air and expel the warm air generated during the cooling process. It consists of a compressor, condenser, evaporator, and an intricate system of coils and refrigerant. These components work together to transfer heat from the interior of the building to the outside, resulting in a cooling effect.
When the Goodman AC unit is turned on, it begins to circulate cool air throughout the building, creating a comfortable environment for occupants. The unit can be controlled by a thermostat, allowing users to adjust the temperature to their desired level.
If you are unsure where the Goodman AC unit is located in your building, it is typically found outside, near the foundation or on the roof. Look for a large metal box with vents on the sides and a fan on the top. This is the housing for the unit and is where the components are housed.
Understanding the Importance of the Fuse
The fuse is an essential component of any AC unit, including the Goodman AC unit. It is a small, protective device that is designed to interrupt the flow of electricity if there is an electrical overload or short circuit. The fuse serves as a safety measure to prevent damage to the AC unit and to protect against potential electrical hazards.
In a Goodman AC unit, the fuse is typically located in the electrical panel of the unit. The exact location of the fuse may vary depending on the specific model of the unit. It is important to know the location of the fuse so that it can be easily accessed and replaced if necessary.
If the fuse in the Goodman AC unit is blown, it will need to be replaced in order for the unit to function properly. Blown fuses are often a result of power surges or electrical issues, and they can cause the AC unit to stop working or operate inefficiently. Replacing the fuse with a new one will restore the proper flow of electricity and allow the AC unit to resume normal operation.
| – The fuse is an important safety device in an AC unit |
| – It is located in the electrical panel of the Goodman AC unit |
| – A blown fuse can cause the AC unit to stop working or operate inefficiently |
| – Replacing the fuse will restore normal operation of the AC unit |
Understanding the importance of the fuse in a Goodman AC unit is crucial for maintaining the unit’s functionality and ensuring the safety of the electrical system. Regularly inspecting and replacing the fuse, if needed, can help to prevent potential issues and prolong the lifespan of the AC unit.
The Fuse in a Goodman AC Unit: Function and Role
The fuse in a Goodman AC unit plays a critical role in protecting the unit from electrical damage. It acts as a safety device by cutting off the power supply to the unit in the event of an electrical overload or short circuit. This helps prevent further damage to the AC unit and reduces the risk of fire or other safety hazards.
Where is the fuse located on a Goodman AC unit? The fuse is typically located in the electrical panel or control box of the unit. It may be housed in a fuse holder or a fuse block. It is essential to know the location of the fuse to be able to inspect it and replace it if necessary.
Goodman is a well-known brand in the AC industry, known for producing reliable and efficient units. Their AC units are designed with safety features, including fuses, to ensure the longevity and proper functioning of the unit.
If you are experiencing issues with your Goodman AC unit, such as a complete loss of power or failure to start, checking the fuse should be one of the troubleshooting steps. However, it is crucial to exercise caution while inspecting or replacing the fuse, as it involves working with electricity. If you are unsure or uncomfortable with performing electrical work, it is best to contact a professional technician to handle the task.
Common Signs of a Blown Fuse
If your Goodman AC unit is not working properly, a common issue could be a blown fuse. It is important to know where the fuse is located and how to identify if it has blown. Here are some common signs to look out for:
No Power: If there is no power to your unit at all, it could be a sign that the fuse has blown.
Fuse Damage: Check the fuse visually for any signs of damage, such as a broken filament or blackened appearance.
Burnt Smell: A burnt smell coming from your AC unit could indicate a blown fuse or other electrical issue.
Tripped Circuit Breaker: If your AC unit is connected to a circuit breaker, check if it has been tripped. This could be a result of a blown fuse.
AC Unit Not Turning On: If your AC unit is not turning on at all, it could be a sign of a blown fuse.
Inconsistent Temperature: If your AC unit is producing inconsistent temperatures or seems to be struggling to maintain the desired temperature, a blown fuse could be to blame.
If you suspect that your Goodman AC unit’s fuse has blown, it is important to have it replaced by a professional. Trying to replace the fuse yourself could lead to further damage or even injury.
Precautions and Safety Measures
When working on any unit, it is important to follow certain precautions and safety measures to ensure your own safety and prevent any damage to the Goodman AC unit.
Here are some precautions you should take when locating the fuse on a Goodman AC unit:
| 1. Power off the unit: | Before starting any work on the AC unit, make sure to turn off the power to avoid the risk of electric shock. |
| 2. Check the user manual: | Refer to the user manual provided by Goodman for specific instructions on locating and replacing the fuse. |
| 3. Gather the necessary tools: | Ensure that you have the appropriate tools such as a screwdriver or pliers to safely remove the panel and access the fuse. |
| 4. Use personal protective equipment: | Wear gloves and safety goggles to protect yourself from any potential hazards while working on the unit. |
| 5. Work in a well-ventilated area: | Ensure that you are working in a well-ventilated area to avoid inhaling any harmful fumes or chemicals. |
| 6. Hire a professional if needed: | If you are not confident or comfortable with working on the unit, it is always best to hire a professional to avoid any accidents or further damage. |
By following these precautions and safety measures, you can safely locate and replace the fuse on your Goodman AC unit.
Tools Required for Finding the Fuse
When trying to locate the fuse on a Goodman AC unit, you will need a few tools to help you in the process. These tools will aid in safely accessing the unit and locating the fuse:
- Screwdriver: You’ll need a screwdriver to remove the cover or panel on the AC unit. This will give you access to the internal components, including the fuse.
- Flashlight: A flashlight will help you see inside the unit, especially if it is located in a dark or cramped area. It will allow you to illuminate the fuse and surrounding components for easier identification.
- Multimeter: A multimeter is a useful tool for testing the fuse to determine if it has blown or if it is still functioning properly. It can measure the continuity or resistance of the fuse, providing valuable information about its condition.
With these tools at hand, you can confidently locate and assess the fuse on your Goodman AC unit. Remember to exercise caution and follow proper safety procedures when working with electrical equipment.
Step-by-Step Guide: Locating the Fuse
If your Goodman AC unit is not functioning properly, it may be due to a blown fuse. The fuse is an important component that protects the unit from power surges and electrical issues. In order to fix the problem, you will need to locate the fuse and replace it if necessary.
The first step is to turn off the power to the AC unit. This is important for your safety as well as to prevent any damage to the unit. Locate the circuit breaker panel inside your home and switch off the circuit that controls the AC unit.
Next, you will need to find the air handler unit. This is usually located in the attic or basement. The air handler unit is responsible for the circulation of air throughout the AC system. Look for any access panels or covers on the unit.
Once you have located the air handler unit, you will need to remove the access panel or cover. This may require the use of a screwdriver or other tools. Be careful not to damage any components inside the unit.
Inside the air handler unit, you will find the control board. This is where the fuse is usually located. It may be labeled as “fuse” or “F1.” Look for a small, rectangular component with metal ends. This is the fuse.
Using caution, remove the fuse from its holder. Check the fuse to see if it is intact or blown. A blown fuse will have a broken metal strip inside. If the fuse is blown, you will need to replace it with a new one of the same amperage rating. You can find replacement fuses at most hardware stores.
Once you have replaced the fuse, carefully insert it back into the holder. Make sure it is seated properly and secure.
Finally, put the access panel or cover back on the air handler unit. Make sure it is properly aligned and secure.
Turn the power back on at the circuit breaker panel. Your Goodman AC unit should now be functioning properly. If the problem persists, you may need to contact a professional technician for further assistance.
Removing the Fuse: Caution and Proper Technique
When it comes to removing the fuse from a Goodman AC unit, caution and proper technique are of utmost importance. The fuse is a crucial component of the unit’s electrical system, and mishandling it can lead to serious damage or even injury. Therefore, it is essential to follow the correct steps to ensure a safe and successful removal.
The first step is to locate the fuse on the Goodman AC unit. Depending on the model and design of the unit, the fuse can be found in different locations. It is typically located on the main control board of the unit. Refer to the unit’s manual or consult a professional if you are unsure of where the fuse is located.
Once you have located the fuse, it is important to turn off the power to the unit. This can be done by shutting off the circuit breaker that powers the unit or by disconnecting it from the main power supply. It is crucial to ensure that there is no power running to the unit before attempting to remove the fuse to avoid the risk of electric shock.
After the power is turned off, you can proceed with removing the fuse. Carefully grip the fuse with your fingers or use a fuse puller tool if one is provided. Gently pull the fuse straight out of its socket, being careful not to twist or bend it. If the fuse is difficult to remove, avoid using excessive force as this can cause damage to the fuse or the socket.
Once the fuse is removed, it is important to inspect it for any signs of damage or wear. Check for any discoloration, melting, or a broken filament. If the fuse appears to be damaged, it will need to be replaced with a new one of the same rating. Using a fuse with a different rating can cause further issues or damage to the unit.
When replacing the fuse, make sure to insert it firmly into the socket. Ensure that it is securely seated and aligned correctly. After the fuse is properly installed, turn on the power to the unit and test its operation. If the unit does not function properly or if the fuse blows again, it may be indicative of a larger electrical problem, and it is recommended to seek professional assistance.
By exercising caution and following the proper technique, you can safely remove the fuse from a Goodman AC unit. Remember to always prioritize safety and consult a professional if you are uncertain or uncomfortable with performing any electrical tasks.
Inspecting the Fuse: Signs of Damage
When trying to locate the fuse on a Goodman AC unit, it is important to know where to look. The fuse can typically be found on the control board of the unit. This control board is usually located inside the air handler or furnace.
To inspect the fuse for signs of damage, you will need to remove the cover of the unit. This may require a screwdriver or other tools, depending on the specific model of your AC unit.
|
Once the cover is removed, locate the control board. The fuse will usually be labeled as “F1” or “Fuse 1” and will be a small, rectangular device with metal ends. Inspect the fuse visually for any signs of damage. These may include a burnt or charred appearance, a broken or missing element, or a blown fuse. If the fuse appears to be damaged, it is likely the cause of the AC unit not working properly. In this case, you will need to replace the fuse with a new one of the same amperage rating. |
|
Replacing a Blown Fuse: Procedure and Recommendations
When the fuse on a Goodman AC unit is blown, it is important to replace it properly to ensure the unit functions correctly. Replacing a blown fuse can be done by following a simple procedure and adhering to certain recommendations.
Here is a step-by-step guide on how to replace a blown fuse in a Goodman AC unit:
| Step | Procedure |
| 1 | Make sure the power to the AC unit is turned off to avoid any electrical accidents. |
| 2 | Locate the fuse box or panel on the AC unit. The exact location may vary depending on the specific model and installation. |
| 3 | Once the fuse box is located, open it using the appropriate tools, such as a screwdriver. |
| 4 | Inspect the fuses inside the box to identify the blown one. A blown fuse will have a broken filament or show other signs of damage. |
| 5 | Remove the blown fuse from its socket by gently pulling it out. Be careful not to damage the fuse socket or any surrounding components. |
| 6 | Replace the blown fuse with a new one of the same type and rating. It is crucial to use the correct fuse to ensure safe and proper functioning of the AC unit. |
| 7 | Close the fuse box and secure it in place using the appropriate tools. |
| 8 | Turn on the power to the AC unit and test its operation to verify that the new fuse has resolved the issue. |
It is important to follow these recommendations during the process of replacing a blown fuse:
- Always ensure the power to the AC unit is turned off before working on it to prevent electric shock or other accidents.
- Use the proper tools for opening the fuse box to avoid damaging any components.
- Inspect the fuses carefully to identify any signs of damage or if they need replacement.
- Replace the blown fuse with the correct type and rating. Using an incorrect fuse can lead to further damage or malfunction of the AC unit.
- After replacing the fuse, securely close the fuse box to protect the internal components.
- Test the AC unit after replacing the fuse to ensure it is functioning properly.
Following these procedures and recommendations will help ensure the safe and effective replacement of a blown fuse on a Goodman AC unit.
Availability of Replacement Fuses
If you are looking to replace the fuse on a Goodman AC unit, it’s important to know where to find one. The fuse is an essential component of the air conditioning system and is responsible for protecting it from power surges and electrical damage.
Goodman AC units typically have fuses located in the main electrical panel or control box. These fuses are readily available at most local hardware stores or home improvement centers. You can also find replacement fuses online through various HVAC suppliers.
When purchasing a replacement fuse, make sure to match the amp rating and type of fuse needed for your specific Goodman AC unit. It’s important to use the correct fuse to ensure the safe and proper functioning of the air conditioning system.
If you are unsure of where the fuse is located or need assistance with replacing it, it’s recommended to consult the owner’s manual for your Goodman AC unit or contact a professional HVAC technician. They will be able to guide you through the process and ensure that the fuse is replaced correctly.
Always remember to turn off the power to the AC unit before attempting any repairs or replacements to avoid the risk of electrical shock. Safety should always be a top priority when working with electrical components.
In conclusion, replacement fuses for Goodman AC units are easily accessible and can be found at local hardware stores, home improvement centers, and online suppliers. Make sure to use the correct fuse and consult a professional if needed.
Troubleshooting Other Possible Issues
If you have checked for the fuse on your Goodman AC unit and determined that it is not the cause of the problem, there may be other issues at play.
First, check to make sure that the thermostat is set to the desired temperature and mode (cooling or heating). It is possible that the AC unit is not turning on because the thermostat is not sending the proper signals.
Next, take a look at the circuit breaker or fuse box that provides power to the AC unit. Make sure that the circuit breaker or fuse is not tripped or blown. If it is, reset the breaker or replace the fuse and see if that solves the problem.
If the circuit breaker or fuse is not the issue, check the electrical connections on the AC unit. Look for any loose or disconnected wires and make sure they are securely connected.
Another possible issue could be with the capacitor. The capacitor is responsible for starting and running the compressor and fan motor. If the capacitor is faulty, the AC unit may not turn on. You can visually inspect the capacitor for any signs of damage, such as bulging or leaking, and replace it if necessary.
Finally, it is possible that there is a problem with the compressor or fan motor itself. This would require professional assistance to diagnose and repair. Contact a qualified HVAC technician to assess the situation and make any necessary repairs.
Remember, troubleshooting and repairing electrical components can be dangerous. If you are unsure or uncomfortable working with electricity, it is best to consult a professional.
In conclusion, if the fuse on your Goodman AC unit is not the issue, check the thermostat, circuit breaker, electrical connections, capacitor, and the compressor or fan motor for any other possible problems. If needed, seek professional help to ensure the safe and proper functioning of your AC unit.
Professional Assistance and Consultation
When it comes to finding the location of a fuse on a Goodman AC unit, it is always best to seek professional assistance and consultation. These experts have the knowledge and experience to locate the fuse on the unit accurately and efficiently.
A professional technician will first examine the unit to determine where the fuse is located. They may have to remove access panels or inspect various components to find the fuse. This is done to ensure that the fuse is easily accessible for replacement or any necessary repairs.
Goodman AC units can have different fuse locations depending on the specific model and design. In some cases, the fuse may be located inside the control panel, while in others, it may be near the condenser unit or the air handler. Consulting with a professional will help identify the exact location of the fuse on your specific Goodman AC unit.
Hiring a professional not only ensures that the correct fuse is located, but also helps prevent any damage to the unit. Attempting to locate the fuse without the necessary knowledge and experience can potentially harm the unit or lead to further issues.
Furthermore, a professional technician can provide valuable guidance and advice regarding the fuse and its function. They can explain how to properly replace the fuse if necessary, and can also recommend any additional maintenance or repairs that may be required.
Overall, seeking professional assistance and consultation is the best course of action when trying to locate the fuse on a Goodman AC unit. Their expertise will help ensure that the process is done correctly and that any necessary repairs or maintenance can be carried out effectively.
Q&A:
Where is the fuse located on a Goodman AC unit?

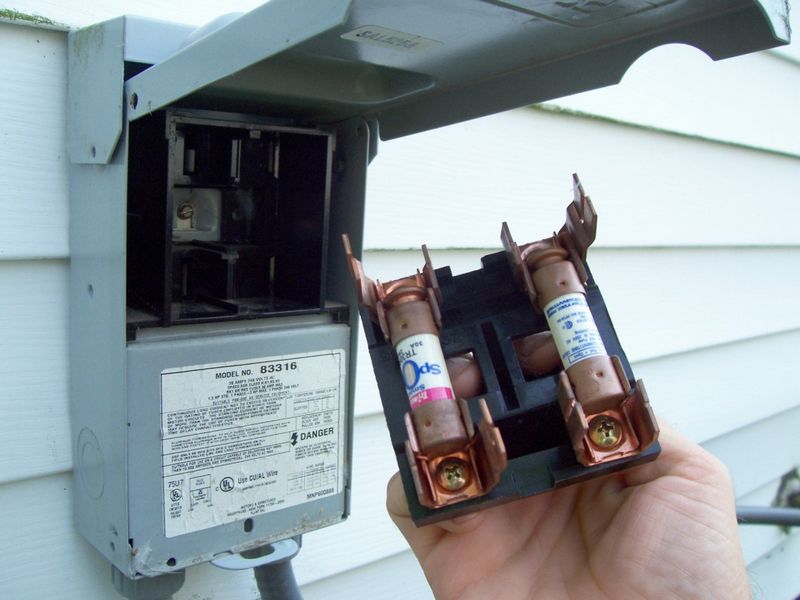

The fuse on a Goodman AC unit is usually located in the outdoor unit near the condenser. It is typically housed in a metal box or panel.
How can I find the location of the fuse on a Goodman AC unit?
To find the location of the fuse on a Goodman AC unit, start by turning off the power to the unit. Then, locate the outdoor unit near the condenser. Look for a metal box or panel on the unit. Open the box or panel to find the fuse.
What does the fuse on a Goodman AC unit look like?
The fuse on a Goodman AC unit is a small, cylindrical object made of glass or plastic. It has a metal filament or wire inside. It may be labeled with its voltage and amperage rating.
Can I replace the fuse on a Goodman AC unit myself?
Yes, you can usually replace the fuse on a Goodman AC unit yourself. However, it is important to make sure you have the correct replacement fuse. Consult the unit’s manual or contact a professional for guidance if needed.
What should I do if the fuse on my Goodman AC unit keeps blowing?
If the fuse on your Goodman AC unit keeps blowing, it may be a sign of a larger problem. It is recommended to contact a professional HVAC technician to inspect and repair the unit. Continuing to replace the fuse without addressing the underlying issue could lead to further damage.
How can I find the location of the fuse on my Goodman AC unit?
The location of the fuse on a Goodman AC unit may vary depending on the specific model. However, in most cases, you can find the fuse near the control board or power supply. It is usually enclosed in a small fuse box. Refer to your unit’s manual or consult a professional if you are unsure.
Is it difficult to locate the fuse on a Goodman AC unit?
Locating the fuse on a Goodman AC unit is typically not difficult. It is usually found near the control board or power supply. You may need to remove the access panel to reach the fuse box. If you are not familiar with AC units or electrical systems, it’s always best to consult a professional to avoid any potential hazards.
